SF₆ Gas Leak Detector

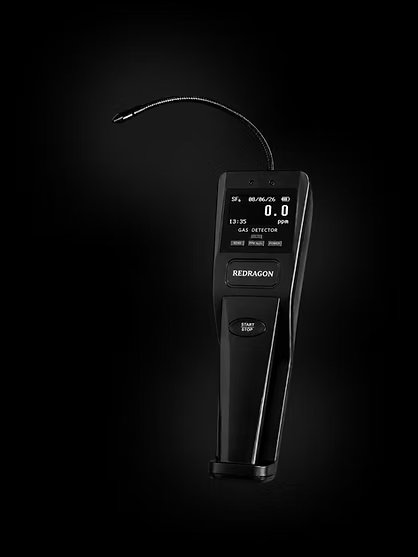

The Redragon SF6 Gas Leak Detector is a precision instrument engineered for efficient detection using Nondispersive Infrared Technology (NDIR) with a measurement range for SF6 gas between 0-1000ppmv and 0-1500ppmv. It includes a 250 mm probe and a built-in pump suction sampling method, boasting a swift response time of 1 second and a warm-up time of 100 seconds. The device operates in temperatures from 0 to 60°C and safely stores between -10 and +60°C. Powered by a 4.2V, 2200mAh rechargeable lithium-ion battery that delivers less than 8 hours of operating time, it supports an AC power supply of 100 to 265 V. Weighing 0.85 kg without its carrier case, the detector has dimensions of 310 mm in length, 100 mm in width, and 85 mm in height, and features an expected lifespan of over 10 years with a calibration cycle required every 1,200 hours of operation or at least every 2 years.
