Partial discharge testing and monitoring Techimp

Techimp AQUILA Portable PD Analyzer

AQUILA

AQUILA Portable PD Analyzer

The Doble Aquila offers comprehensive Partial Discharge measurement and temporary monitoring capabilities for field testing of High Voltage Assets with particular focus on MV and HV cable insulation system health assessment. The.

Request a quote Datasheets & manuals

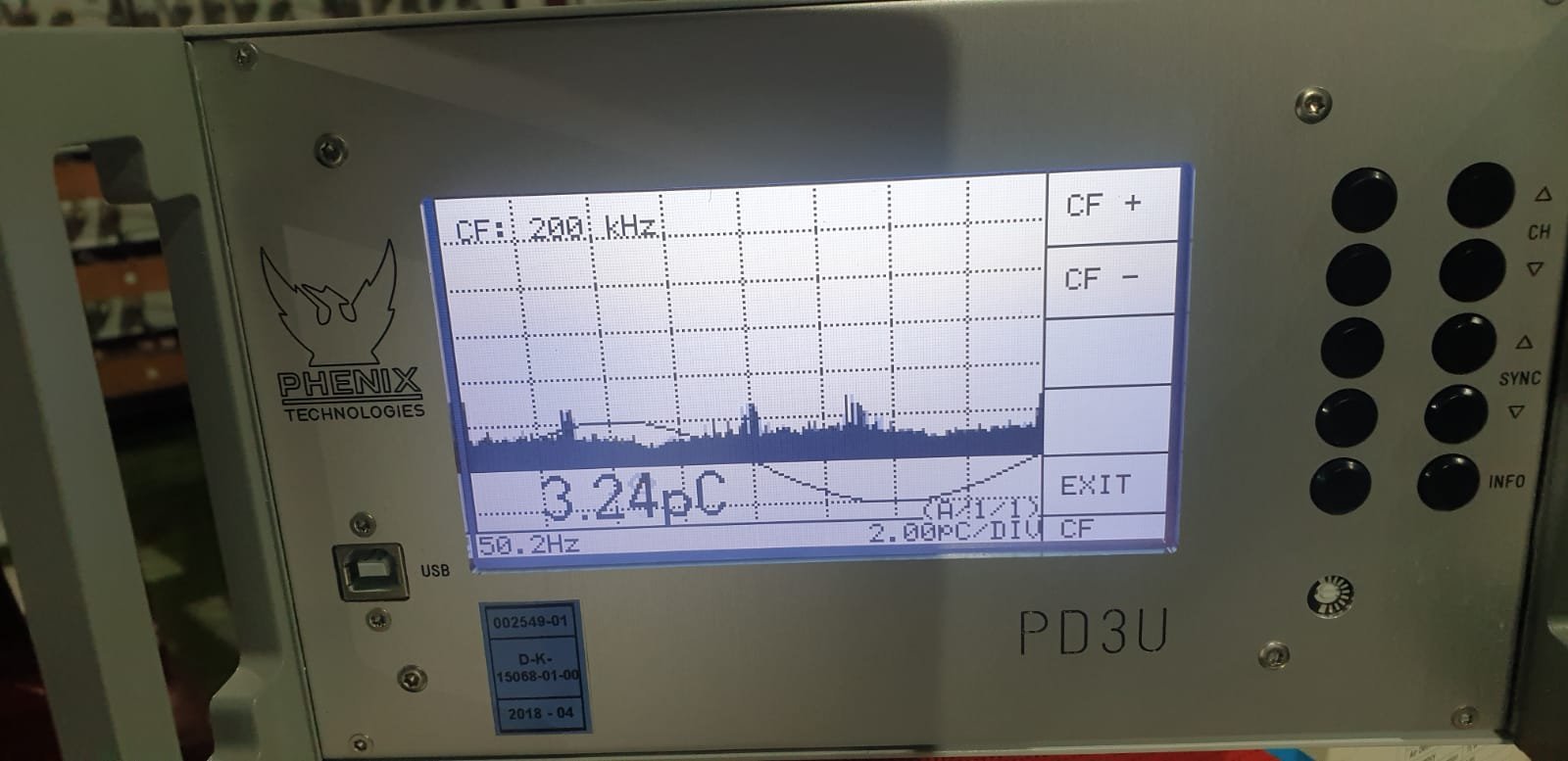

Partial discharge detector reading during testing at BPDB CERS

Overview

The Doble Aquila offers comprehensive Partial Discharge measurement and temporary monitoring capabilities for field testing of High Voltage Assets with particular focus on MV and HV cable insulation system health assessment. The battery powered device features a three channel 30MHz bandwidth Ultra-Wide-Band acquisition system, paired with advanced signal analysis tools including TF mapping. It enables users to discriminate PD from noise and other nuisance signals in the most challenging environments such as Medium.

Part of the wider Doble portfolio of in-service PD test equipment, the Aquila's primary technological value proposition focuses on cable assessment and cable fault location. However, the AQUILA is suitable for a wider range of field diagnostics and temporary monitoring of assets such as electric generators and motors, transformers, gas insulated and air insulated

Doble TF Mapping Technology allows to differentiate different PD phenomena and noise at the time of measurement as well as post processing. In addition to the phase resolved pulse characteristics phase angle and magnitude - the detector determines two additional characteristics of each pulse called "Equivalent Time (T)" and "Equivalent Frequency (F)". Pulses from different PD, noise or other signal sources will exhibit different T and F characteristics. By filtering in the T/F domain, superimposed phase resolved.

Key capabilities

  • Innovative: Instrument for partial discharge recording
  • Ultra Wide Band: Fast integrated processing capability
  • 3 (up to 6) Channels synchronous acquisition
  • 30MHz UWB detector with TF mapping
  • Up to 6 PD Channel: Full support to UWB Doble Technology,
  • PD Classification

Specification

Indicative specification for Techimp AQUILA Portable PD Analyzer

Indicative specification for guidance. Confirm the current manufacturer datasheet for the configuration being quoted.

Typical applications

  • Part of the wider Doble portfolio of in-service PD test equipment, the Aquila's primary technological value proposition focuses on cable assessment and cable fault location

Request for quotation

Quote for Techimp AQUILA Portable PD Analyzer

The product is already filled in. Tell us the application and we will come back with a configuration and price.
What do you need?
Your details
